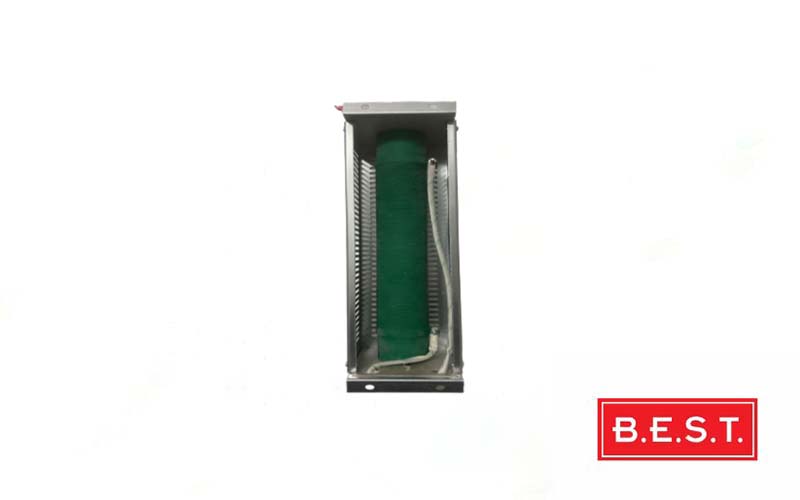

MİNİ TİP

Sroll To Bottom
TECHNICIAL SPECIFICATIONS (MİNİ TİP )
Insulation Information3000V
Operating Voltage380 V
Dimensions12x24x10mm
CoolingNatural Convection
Resistor Ohm Values2Ω ~ 600Ω
Resistance Tolerance±5 %
Electrical TerminalPorcelain Terminal Block
Mounting TypeScrew Mounting
Protection ClassIP20
Other SpecialIt is insulated with micanite sheet to prevent leakage to the chassis.
Other SpecialHigh temperature resistant non-flammable silicone cable and fireproof sleeving are used.
BRAKE RESISTANCE CERAMIC PIPE 20 cm (.)Download
BRAKE RESISTANCE DIAGRAM 20 cm (.)Download
