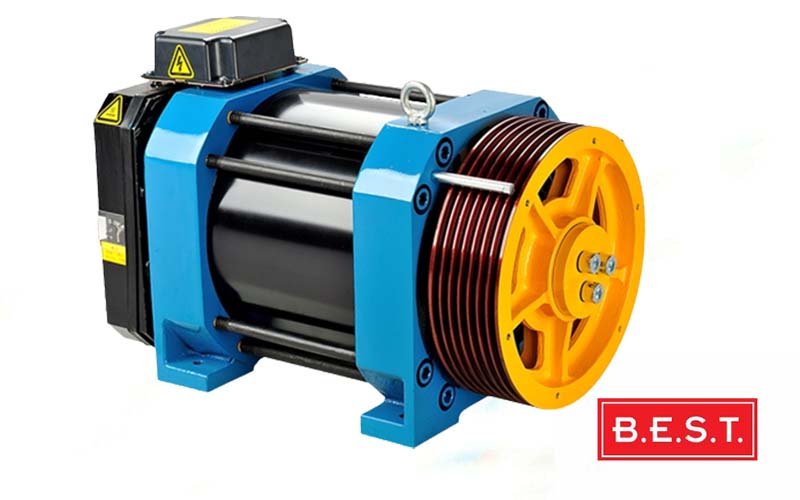

32 PULLEY (320mm) 2:1 HANGER
CSAG-D 450Kg
| TECHNICIAL SPECIFICATIONS (CSAG-D 450Kg) | |
|---|---|
| Capacity | 450Kg |
| Cabin Speed | 1.0m/s ~ 1.6 m/s |
| Pulley Diameter | 320 mm |
| Rope Diameter | 8 mm |
| Number of Ropes | 4 |
| Strap Shape | 2:1 |
| Motor Power | 1m/sn=3.0kw ― 1.6m/sn=4.8kw |
| Motor Current | 1m/sn=7.0A ― 1.6m/sn=12.5A |
| Number of Poles | 24 |
| Rated Speed | 1m/sn=120 ― 1.6m/sn=192 rpm |
| Encoder | Hengstler - SinCos |
| Maximum Static Load | 3000Kg |
| Cruising Distance | ≤ 50m ~ ≤ 80m |
| Rated Voltage | 380 V |
| Protection Class | IP41 |
| Insulation Standard | F |
| Rope Trough Shape | U |
| Brake | Shaft Brake |
| Brake Voltage | DC 190 V |
| Brake Current | 1.1A*2 |
| Machine Weight | 225Kg |
| Other Special | With Pulley Protection Cover / With Manual Brake Release Device |
